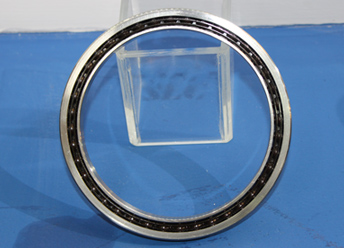

B71918C Angular Contact Ball Bearing | ||||
Model: | B71918C | |||
Type: | Angular Contact Ball Bearing | |||
Brand: | W: | |||
d: | 90 | D: | 125; | |
Tel: | ||||
phone: |
Type:
the type of angular contact ball bearings are: 7000 c (∝ = 15 °) and 7000 ac type (∝ = 25 °) and 7000 b (∝ = 40 °) etc. These types have the lock on the outer ring of bearing, general inside ring and outs
Angular Contact ball beari
Single row angular contact ball bearings:
Single row angular contact ball bearings can only carry one direction axial load. when bear radial load, will cause the additional axial force, must apply to the corresponding reverse load, therefore, this kind of bearings are generally used in pairs. Double row angular contact ball bearings can bear larger to two-way joint mainly consisting of radial load, axial load and torque load, it can limit shaft or shell two-way axial displacement, contact Angle of 30 degrees.
Angle contact ball bearing which should be Installed in pairs:
back-to-back configuration, postposition code-named the DB (such as 70000 / DB)
face to face configuration,postposition code-named DF (such as 70000 / DF)
series connection configuration,postposition code-named DT (such as 70000 / DT)
Angular Contact Ball Bearing
FAG Bearing
|
d
|
D
|
B
|
Brand |
Bearing kinds |
B71918C |
90
|
125
|
16
|
FAG
|
Angular Contact Ball Bearings
|
